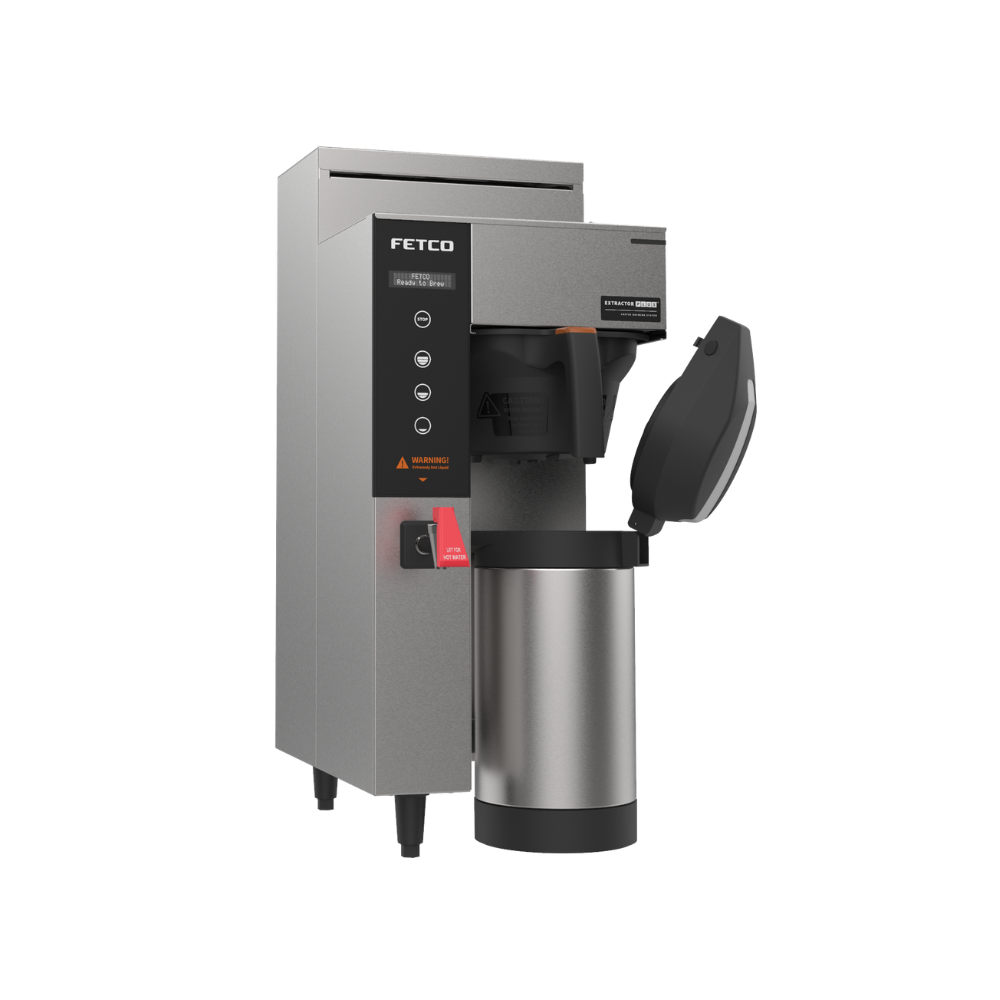

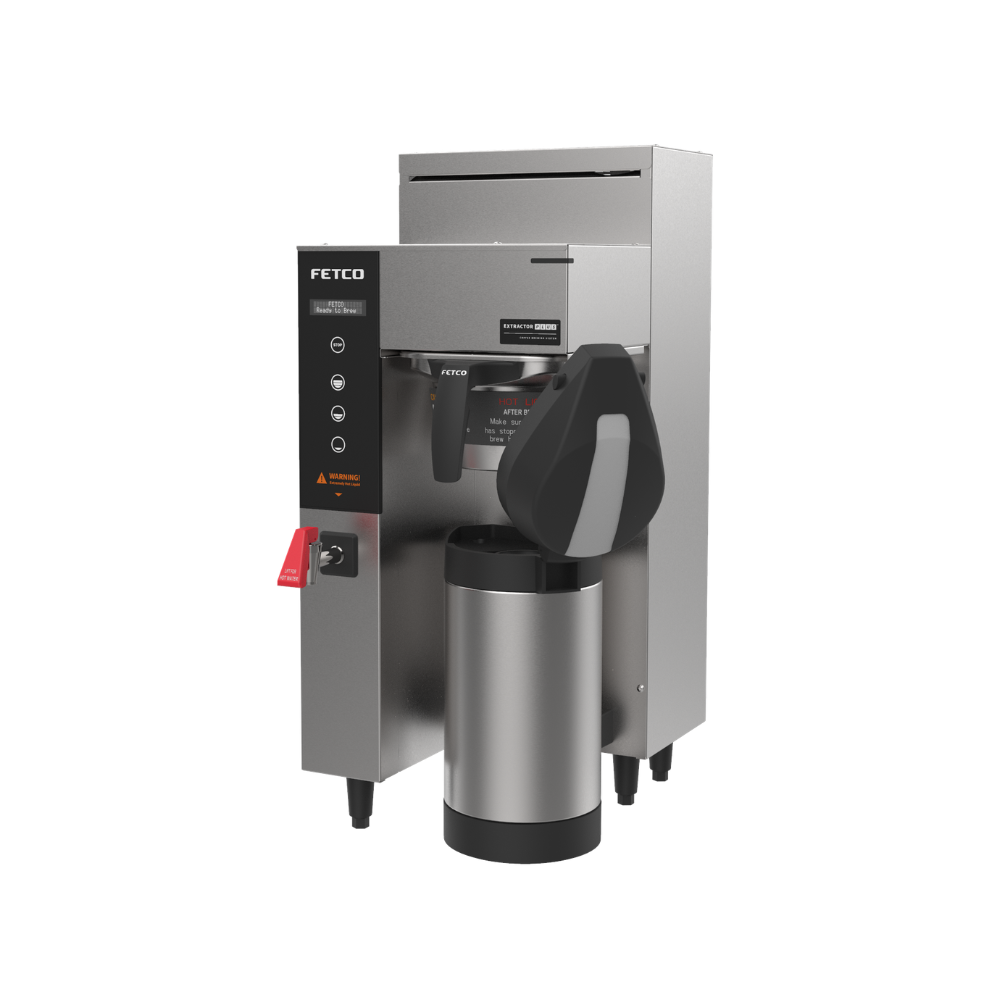

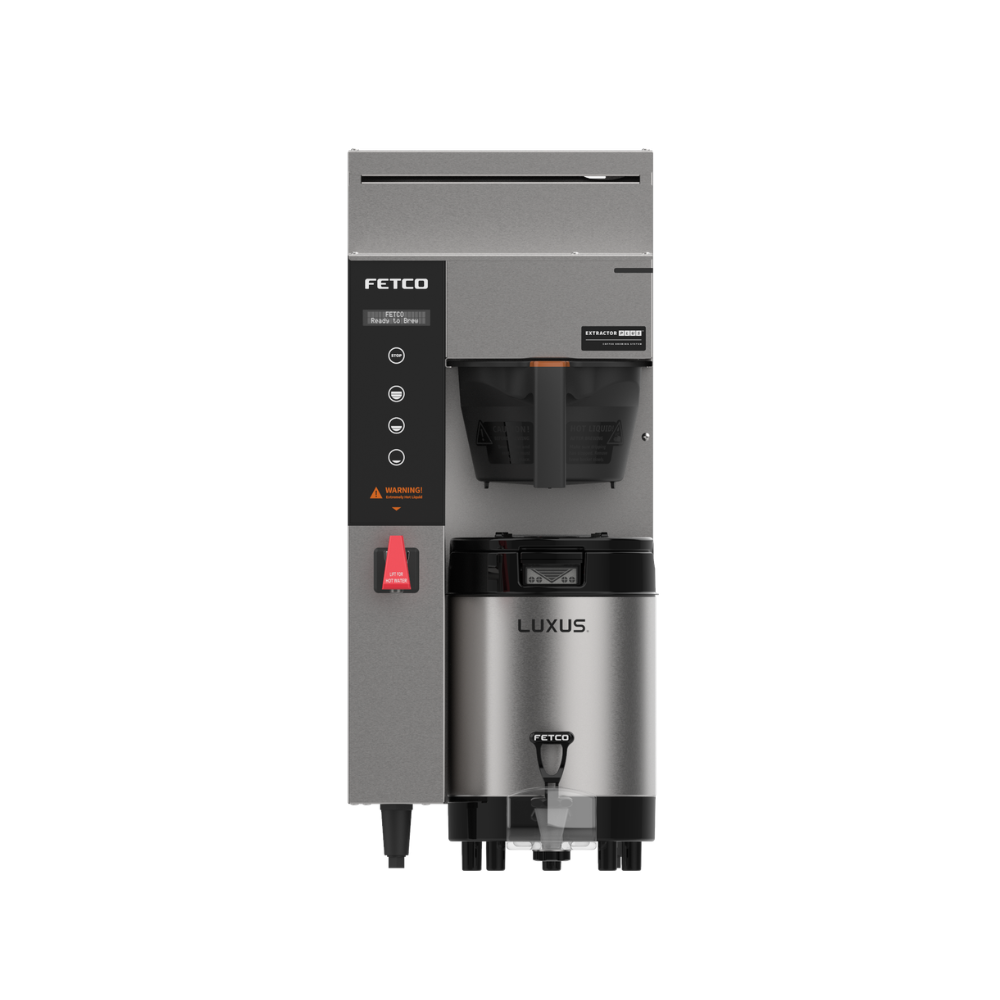

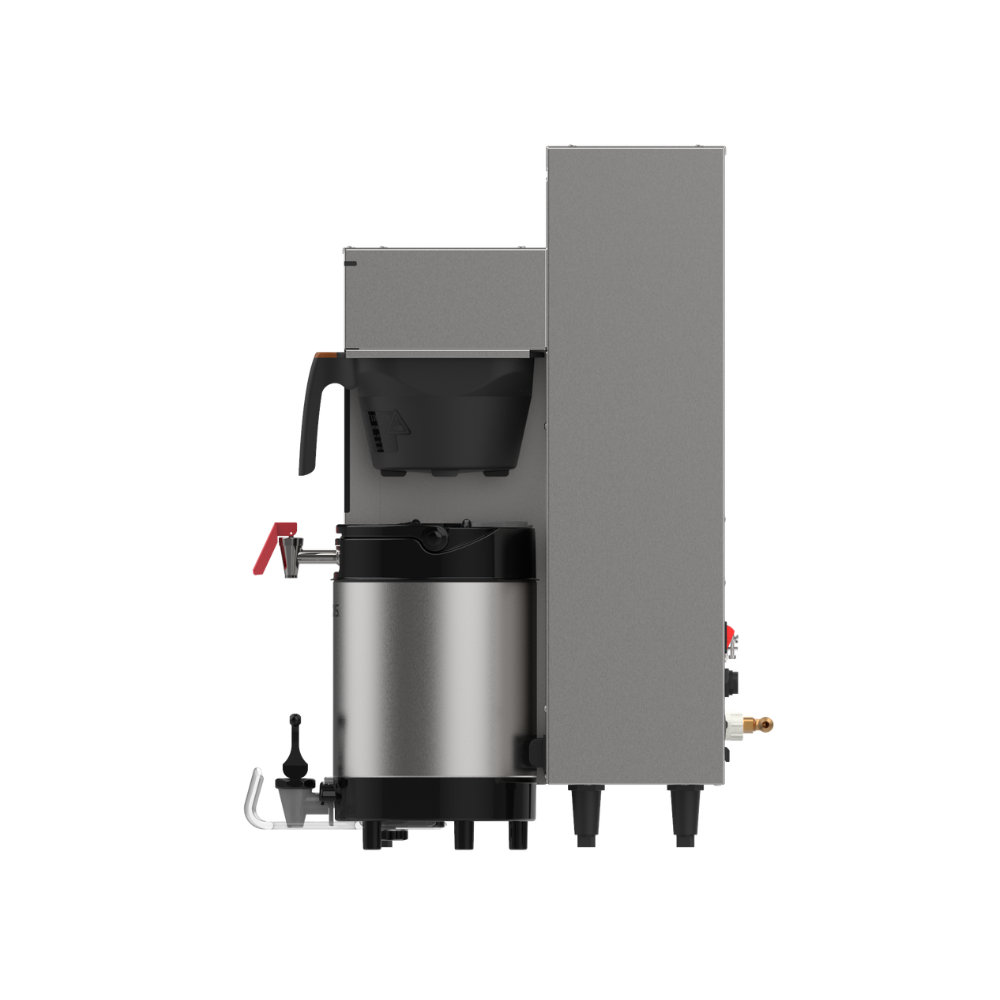

The single station CBS-1231 Plus Series Single Station Coffee Brewer is a perfect hot beverage solution for low- to medium-volume self-service environments such as convenience stores, cafeterias, specialty coffee shops, or office coffee service (OCS). Designed specifically for smaller batch brewing, these high-quality brewers possess many of the legendary features and reliable performance you’ve come to expect from Extractor® branded products at a competitive price.
Standard Features:
- Plastic Brew Basket
- Brew Basket Sensor
- Manual Hot Water Faucet
- ECO Mode
- USB Plug-in Feature
- Electrical Lattice
- Laser Welded Tank
- Push Button Interface
Compatible with:
- L4S-10 LUXUS® Thermal Dispenser (D451)
- LGS-10 LUXUS® Sight Gauge Server (D482)
- 2.5L Pump Lever Airpot (D081)
- 3.0L Pump Lever Airpot (D041)
- 3.8L Pump Lever Airpot (D063)
- 2.2L Glass Lined Airpot (D078)
- 2.2L Pump Lever Airpot (D080)
Circuit Boards
- 1 year labour warranty from purchase date
- 3 year parts warranty from purchase date
Electromechanical Parts
- 1 year labour warranty from purchase date
- 2 year parts warranty from purchase date
Other Parts
- 1 year labour warranty from purchase date
- 1 year parts warranty from purchase date
Accessories and Dispensers
- 1 year labour warranty from purchase date
- 1 year parts warranty from purchase date
Dispenser Funnels
- 1 year labour warranty from purchase date
- 1 year parts warranty from purchase date
| Fetco CBS-1231 | |
|---|---|
| Dimensions (W/H/D in) | 11.75in x 26.25in x 20.5in |
| Weight (Shipping) | 41 lbs |
| Tank Capacity | 3 G / 11.36 L |
| 8 oz / 236 ml cup/hr | 127 |
| 12 oz / 355 ml cup/hr | 85 |
| 16 oz / 473 ml cup/hr | 63 |
| 20 oz / 591 ml cup/hr | 51 |
| Electrical Connection | Cord and Plug |
| Volts | 120 or 208-240 |
| Amps | 13-19.7 |
| Phase | Single |
| Water Inlet Size | 3/8" (Male Flare) |
| Minimum Flow Rate | 1.5 gpm |
| Water Pressure Requirement | 20-75 psig |
