Description
Description
DESIGN
New functions and technologies in order to respond to different market needs.
The result of this process is called MI20 Touch and MI40 Touch.
Developed in collaboration with V12 Design studio, they are characterized by a unique style, that brings an innovative 3.5’’ Touch Screen display and an intuitive Macap HMI.
With a modern and an attractive design, our grinders offer speed and quality.
MAIN FEATURES

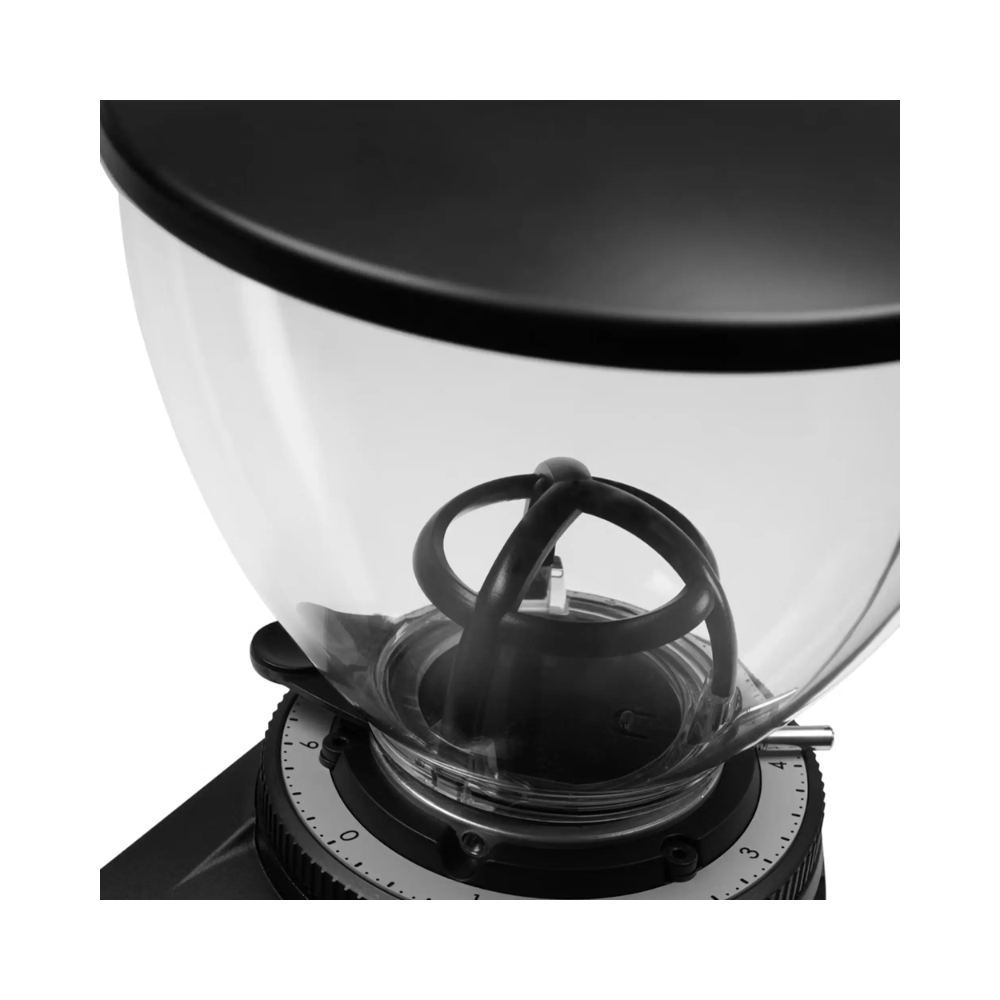

- 1 Coffee hopper capacity 1,2 gr

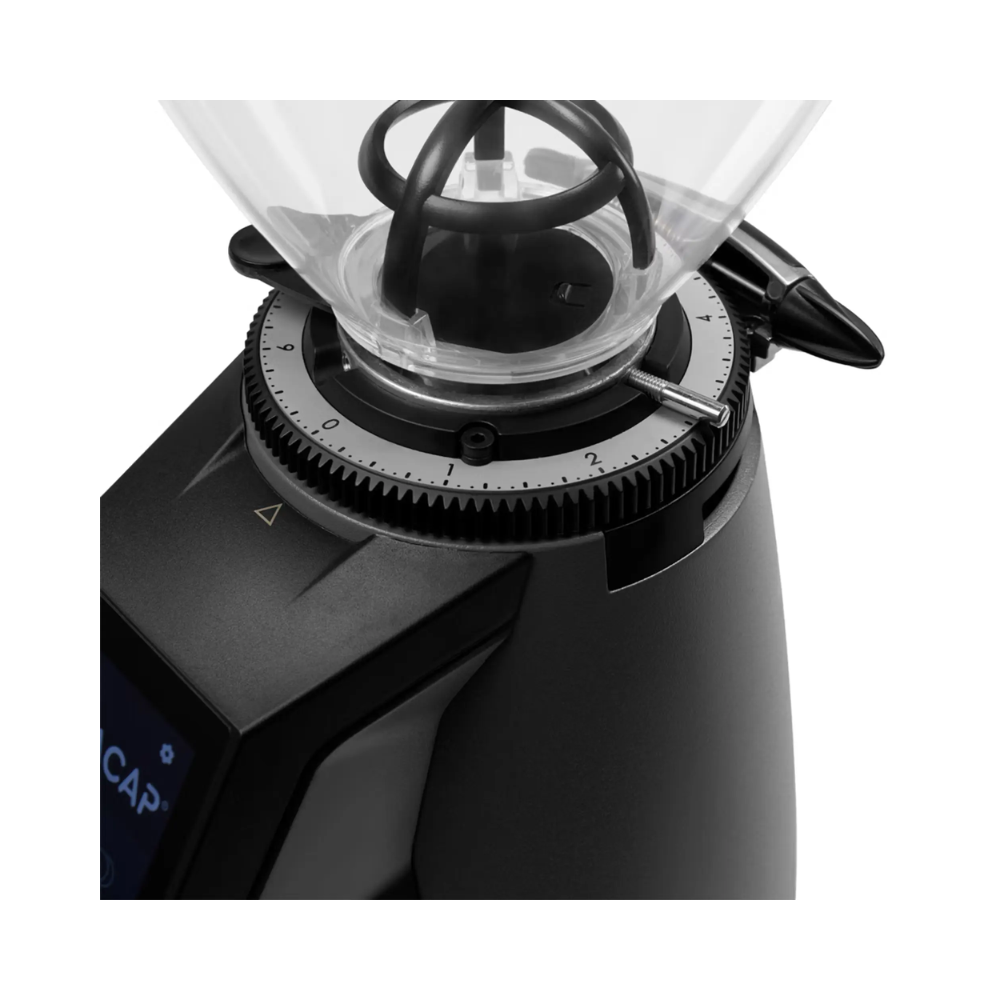

- Ring with zero grinding setting
- 65 mm flat burrs

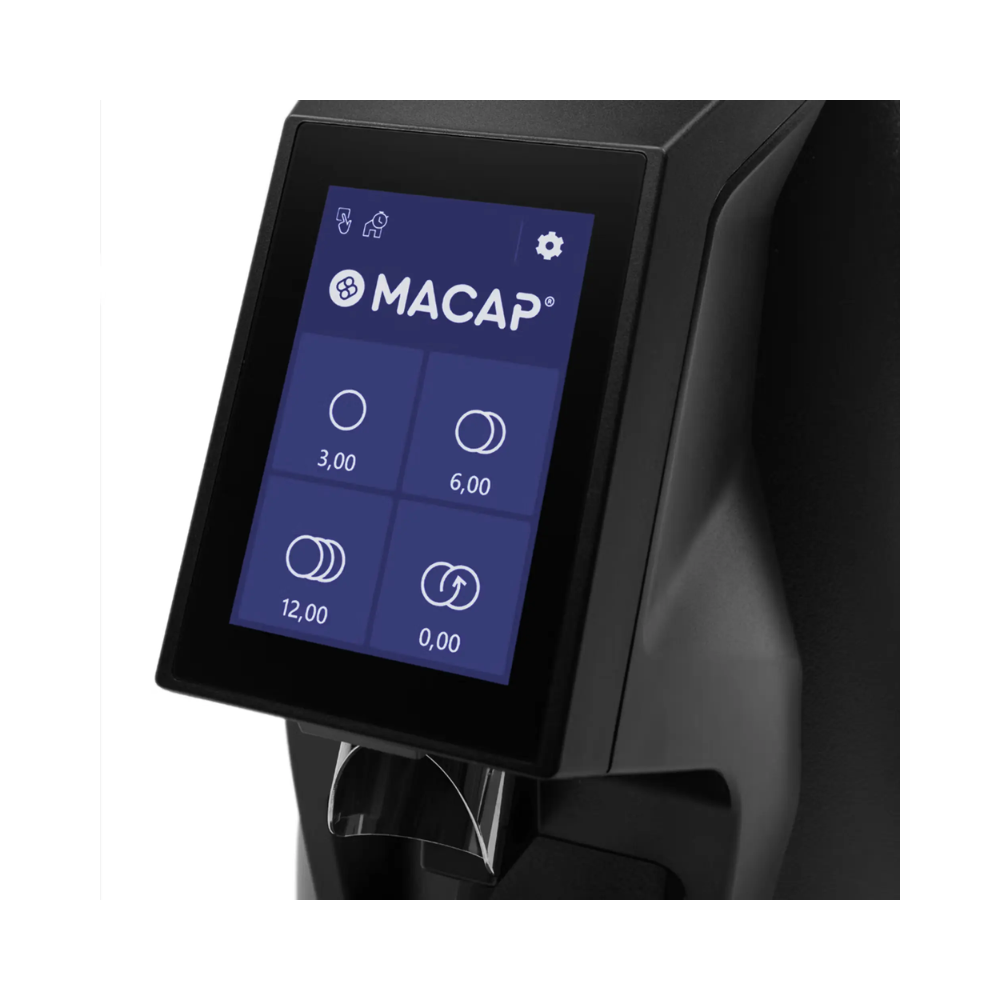

- 3.5” Touch Screen Display with new HMI
- Instant productivity (espresso): 2,6 - 3,3 g/s
- Activation button made in IP68
- Air intakes in the base for forced suction
- Adjustable LED lighting for working area
- Dimensions (W×D×H) 194×307×560 mm
- Motor power 480 W
- Hands free filter holder support
- Metal fork with anti-vibration coating
- Removable tray
- Adjustable cooling fan
- USB-C socket
INTERFACE
- Dynamic homepage
- Four settable doses
- Continuous doses
- Fast Program Function
- Standard, Push & Grind or Barista Mode
- Adjustable LED lighting
- Fan regulation on 5 levels (only MI40 Touch)
- Customized interface Dose-counter (daily, weekly and total)
- Configuration of password for access

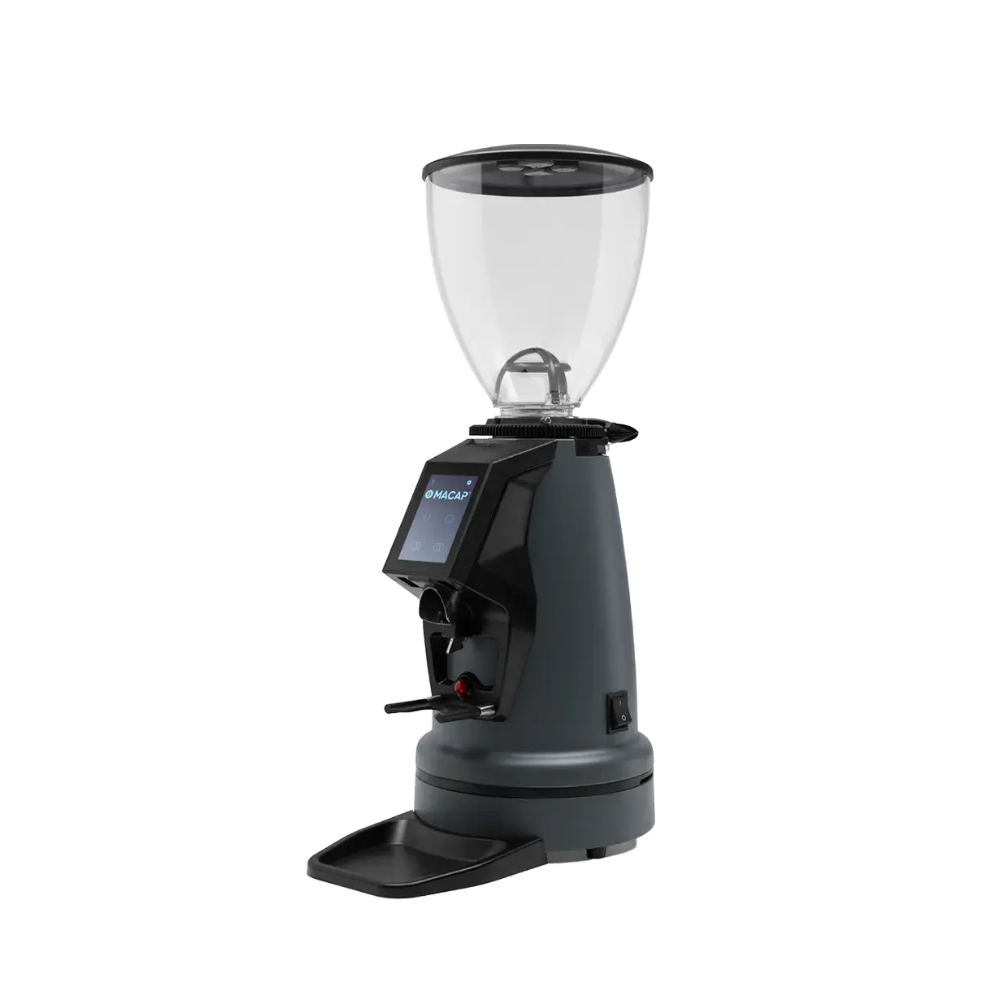

| Macap MI40 Touch Stepless | |
|---|---|
| Dimensions (W/H/D mm) | 194 x 307 x 560 |
| Motor Power (W) | 480 |
| Burrs (mm) | ø 65 Flat |
| Weight (kg) | 8.9 (19.6lbs) |
| Hopper Capacity (G) | 1200 |
| Productivity | 2.6 - 3.3 g/s |
| RPM | 1400 rpm (50 Hz) | 1680 rpm (60 Hz) |
| Adjustment | Standard | Programmable | Four Doses |
| Fork Material | Metal |
| Display | 3.5" Touch Screen Display with HMI |
| Adjustment | Grind Adjustment Ring with Zero Grind Setting |
| Intake | Air Intakes in the Base for Forced Suction |
| Cooling | Adjustable Cooling Fan |
| System | Stepless Adjustment System |
