Vivreau  |  SKU: 1054236

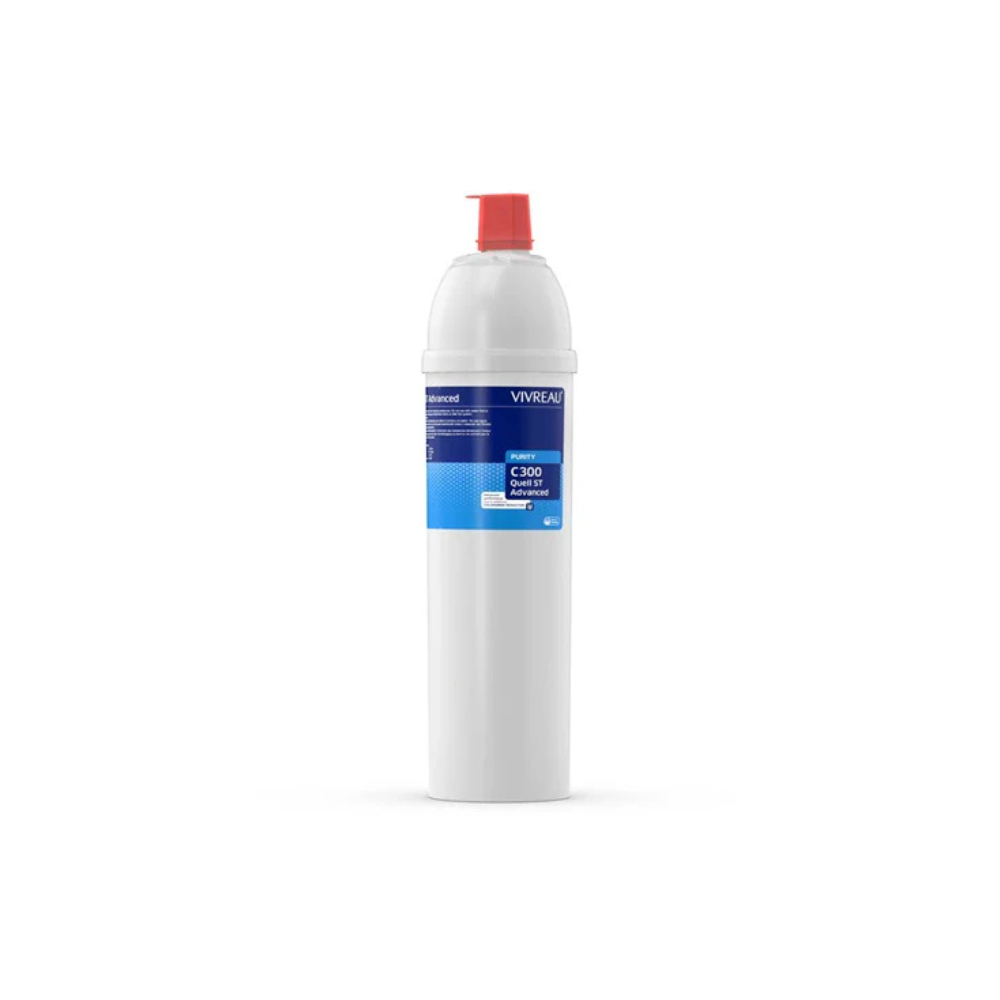

Vivreau Purity C300 Quell ST Advanced - Water Filter Cartridge

$287.62 CAD
Taxes and shipping calculated at checkout.
Add to wishlist Remove from wishlist

Description

*Filter head Sold Separately

Experience Unique Quality

Specially developed for catering and vending sectors, the PURITY C Quell ST Advanced filter cartridges reduce carbonate hardness in drinking water and, therefore, reduce the danger of limescale deposits in equipment. In addition, the filter medium retains chloramine, metal ions, such as lead or copper, and also reduces substances that can negatively affect taste and aroma (such as chlorine residues).

Features and Functionality:

  • Limescale deposits and the associated machine breakdowns are reduced including additional service and repair costs.
  • Reduction of Chloramine concentration by up to 80% for the best taste and aroma
  • The removal of unwanted taste and aroma elements in the filtrate (and in the bypass water) for optimum quality of the end product
  • One filter head concept for all cartridge versions in the PURITY C Advanced range with various head designs for individual requirements
  • Simple to handle with rapid-change system including an innovative locking handle for reliable adjustment
  • Integrated flush valve for easy operation and space-saving thanks to the water inlet and outlet on the one side of the filterhead

Systematic filter technology

  • Pre-filtration A pre-filter retains coarse particles.
  • Carbonate hardness reduction The PURITY C Quell ST filter medium reduces carbonate hardness. As a result, unwanted limescale formation is prevented.
  • Activated carbon filtration All of the water – including the bypass water – runs through an activated carbon filter, so substances that have an adverse effect on the taste and aroma are removed.
  • Fine filtration At the end of the filtration process a fleece retains any fine particles.
PURITY C Quell ST C300
Technology Decarbonisation
Capacity - coffee/espresso/vending machines (at a carbonate hardness of 10 °dH/bypass setting of 40%) 4,000L
1,057 US gallons
Max. operating pressure | Water intake temperature 8.6 bar | 39.2 °F – 86 °F (29 psi – max. 125 psi)
Nominal flow (Pressure loss at nominal flow) 60 l/h (0.25 bar
15.85 US gallons/h
Dimensions (W/D/H) with filter head 4.92/4.69/18.35 in
Weight (dry/wet) 6.2/9.3 lb
Connections (input/output) G 3/8“ or John Guest 8 mm (JG 8) or 1/2“ NPT
Operating position horizontal and vertical | use after inhouse softening units possible
Explanatory notes The capacities given have been tested and calculated on the basis of normal application and machine conditions. Due to external influences (e.g. variations in raw water quality and/or machine type), deviations from these results can occur.
Only drinking water quality may be used as the water supply for VIVREAU water filters.
