Description
Description
Timeless design meets cutting-edge hygiene technology.
Transform your workspace with a modern water tap offering advanced filtration and a range of refreshing options.
- Four water types: unchilled still, chilled still, semi-sparkling and sparkling
- Available in two tap heights
- Vivreau ThermalGate™ technology automatically heats the tap to disinfect it, providing a powerful and proactive defense against germs
- Focus on sustainability R290: natural refrigerant and extremely low power consumption
- Average output capacity:85 l/h
-
Unit dimensions:
- Tall tap: (H x D; Diameter)
- 17¾” x 6¾” ; 2¾”
- Short tap: (H x D; Diameter)
- 15⅛” x 6¾”; 2¾”
- Tall tap: (H x D; Diameter)
-
Dispensing height:
- 13″ (tall tap) | 10¼” (short tap)
-

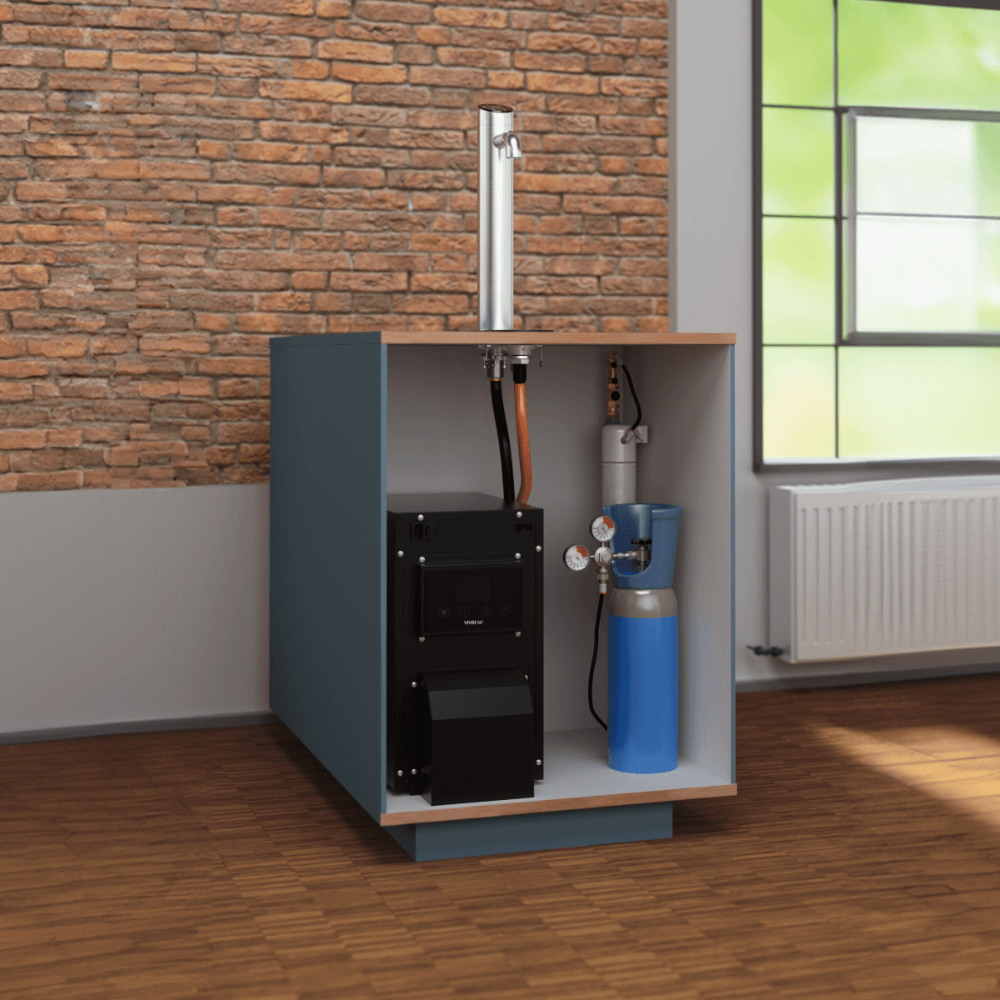

Fits into base cabinet with the following dimensions (W X H X D)
- 24″ x 30″ x 24″
Optional: HygienePlus
An industry benchmark, this triple safeguard protects against bacteria, microbial cysts, microplastics, pharmaceuticals, legionella, and E-coli. Transforming tap water into hospital-grade hygienic water in a single system, the HygienePlus feature can be added to Vivreau’s Extra I-Tap water dispensers.
Hygiene Plus Triple Safeguards:
- Carbon Block Filter: This powerful filter removes contaminants from large to microscopic with its 0.2 micron membrane: sediments, pharmaceuticals, and 99.9999% of bacteria (including E.coli and Legionella) and 99.95% of microbial cysts. And as always, ensuring impurities like chlorine are filtered so that the taste is delicious.
- CLARITY Safe X3 Filter: For exceptional hygiene, this additional filter provides secondary filtration through an exceptionally fine double layer membrane. It removes removes any last remaining bacteria, microbial cysts and other unwanted impurities – right there and then. This final layer of protection guarantees water of impeccable quality and hygiene every time.
- ThermalGate™ Feature: Finally, Vivreau’s powerful ThermalGate™ feature regularly heats the dispenser outlet tap automatically. This shields against contamination from external sources, such as touching the tap and airbourne droplets from sneezing or coughing. ThermalGate™ comes standard on our Top Pro and Extra I-Tap systems.
Water Types
-
Unchilled
-
Chilled Still
-
Semi-Sparkling
-
Sparkling
| Extra I-Tap | |
|---|---|
| Cooling capacity (l/h) | 85 |
| Dimensions (W x H x D inch) | 16 x 19.5 x 10.75 (cooler-carbonator) Tall tap: (H x D; Diameter) 17.75 x 6.75; 2.75 Short tap: (H x D; Diameter) 15.125 x 6.75; 2.75 |
| Dispensing Height (inch) | Tall tap: 13 Short tap: 10.75 |
| Weight | 84 lbs (cooler-carbonator) Tall tap: 5 lbs Short tap: 4 lbs |
| Flow Rate | 0.5 gal/min |
| Drip tray | Integrated |
| Water types | Unchilled, chilled still, chilled sparkling, semi-sparkling |
| Waste water connection | Optional |
| Hygiene Configuration | ThermalGate™ (Standard) HygienePlus (Optional) |
| Voltage (V) | 220-240 V |
| Frequency (Hz) | 50 |
| Max. current (A) | 2.4 |
| CO2 operating pressure (psi) | 65 |
| Max. power consumption (W) | 87 |
| Min. inlet water pressure (psi) | 36 |
| System operating inlet water pressure (psi) | 58 |
| Inlet water temperature (°F) | 41-77 |
| Temperature range (°F) | 60.8-89.6 |
| Height above sea level (inch) | > 78740 |
| Max. humidity (%) | 60 |
| Noise emission | < 60dB |
| Refrigerant | R290 (type) 0.15 lbs |
